ASRock Z790 PG Lightning Motherboard review with Intel 13th Gen compatibility

Description

Performance and Power: A Gamer’s Dream

Testing the ASRock Z790 PG Lightning Motherboard felt like stepping into a power-packed arena. With its 14+1+1 Phase Power Design and Dr.MOS for VCore+GT, this motherboard doesn’t just handle tasks; it dominates them. I paired it with a 13th Gen Intel processor, and the results were seamless. Multitasking with heavy applications and gaming on max settings felt like second nature. The DDR5 DIMMs supporting up to 6800+(OC) were a standout feature, ensuring that speed never became a bottleneck. Whether you’re editing videos or running demanding simulations, this motherboard stands up to the challenge.

The Realtek 2.5G LAN integration was another highlight for me. It delivered super-fast connectivity during online gaming sessions, with almost no lag. Though I did notice the chipset heated up slightly during extended use, the performance didn’t waver.

Design and Build Quality: Sleek and Sturdy

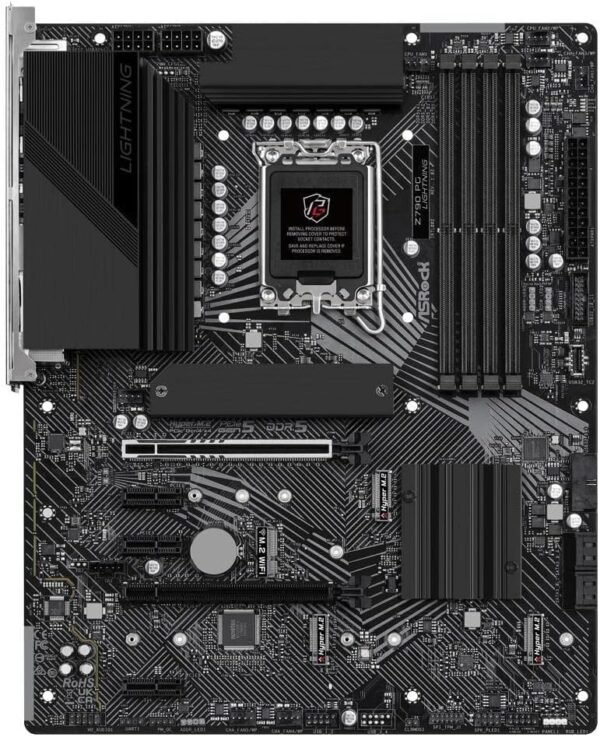

I’ve got to say, the first thing that caught my eye was the sleek design of this motherboard. Its layout is clean and intuitive, making installation straightforward even for those less experienced. At just 3.08 pounds, it’s lightweight but doesn’t feel flimsy in the slightest. The PCIe slots are well-reinforced, and the overall build feels durable enough to handle frequent upgrades or adjustments.

The graphics output options, including HDMI and eDP, are strategically placed. This makes cable management a breeze, which is something I always appreciate in a motherboard. However, I did find the placement of the M.2 slots a bit cramped when trying to fit multiple drives.

Compatibility and Expandability: Built for the Future

One of the key benefits of this motherboard is its wide compatibility. Supporting both 13th Gen and 12th Gen Intel Core processors, it offers flexibility for those considering an upgrade path. The PCIe 5.0 x16 slot is a standout feature for gamers and professionals alike, ensuring that even the latest GPUs have a home here.

The four DDR5 DIMMs are a godsend for memory enthusiasts. I tested this with 64GB of RAM, and the system handled it effortlessly. Additionally, the inclusion of three Hyper M.2 slots offers incredible storage expansion, perfect for those working with large files or extensive game libraries. The only drawback I noticed is the absence of onboard WiFi, although the M.2 Key-E slot does allow for an upgrade if needed.

Audio and Connectivity: Immersive and Versatile

The Realtek ALC897 Audio Codec, coupled with Nahimic Audio, provided an immersive sound experience. Whether I was gaming or watching movies, the 7.1 channel HD audio delivered rich, crystal-clear sound. That said, audiophiles might find the audio quality slightly lacking compared to higher-end codecs.

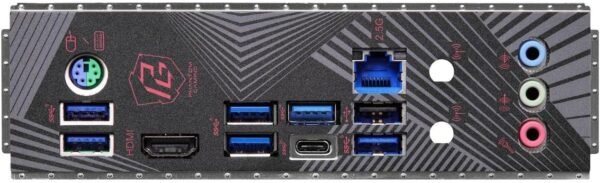

Connectivity options are a huge plus here. With 1 USB 3.2 Gen2x2 Type-C, 9 USB 3.2 Gen1 Type-A, and 3 USB 2.0 ports, you’ll never run out of slots for peripherals. The front USB Type-C feature was particularly handy for quick data transfers.

Good Aspects

• Top-tier performance with 14+1+1 Power Design and DDR5 support.
• Extensive expandability, including PCIe 5.0 and multiple M.2 slots.
• Durable build quality that feels premium and sturdy.
• Exceptional connectivity, with a wealth of USB ports for all needs.

Areas for Improvement

• No onboard WiFi, which feels like a miss in this price range.
• M.2 slot placement could be more user-friendly for easier installation.
• Audio quality, while good, might not satisfy high-end audiophiles.

Competing Products

Comparing this motherboard to MSI MAG Z790 TOMAHAWK WiFi, the ASRock Z790 PG Lightning Motherboard holds its ground in performance but does fall short with the lack of built-in WiFi. The MSI model excels in offering onboard wireless connectivity and a slightly more refined BIOS interface. However, the ASRock option shines with its PCIe 5.0 support, which the MSI model lacks.

When stacked against the Gigabyte Z790 AORUS Elite, ASRock’s offering feels more focused on power delivery and expandability. Gigabyte’s model, on the other hand, edges ahead in audio quality and thermal management. If you’re gaming or working on heavy-duty tasks, ASRock’s power design and DDR5 compatibility are hard to beat.

Cost-Effectiveness

I’d say this motherboard provides solid value for money, especially for those who want cutting-edge features without breaking the bank. The inclusion of PCIe 5.0 and support for 6800+ MHz DDR5 memory makes it future-proof to a large extent. While the lack of onboard WiFi is disappointing, the performance and expandability more than make up for it.

For gamers, tech enthusiasts, or anyone building a high-performance rig, this motherboard is a compelling choice. When comparing it to higher-priced competitors, it offers nearly the same set of features at a more accessible price point.
